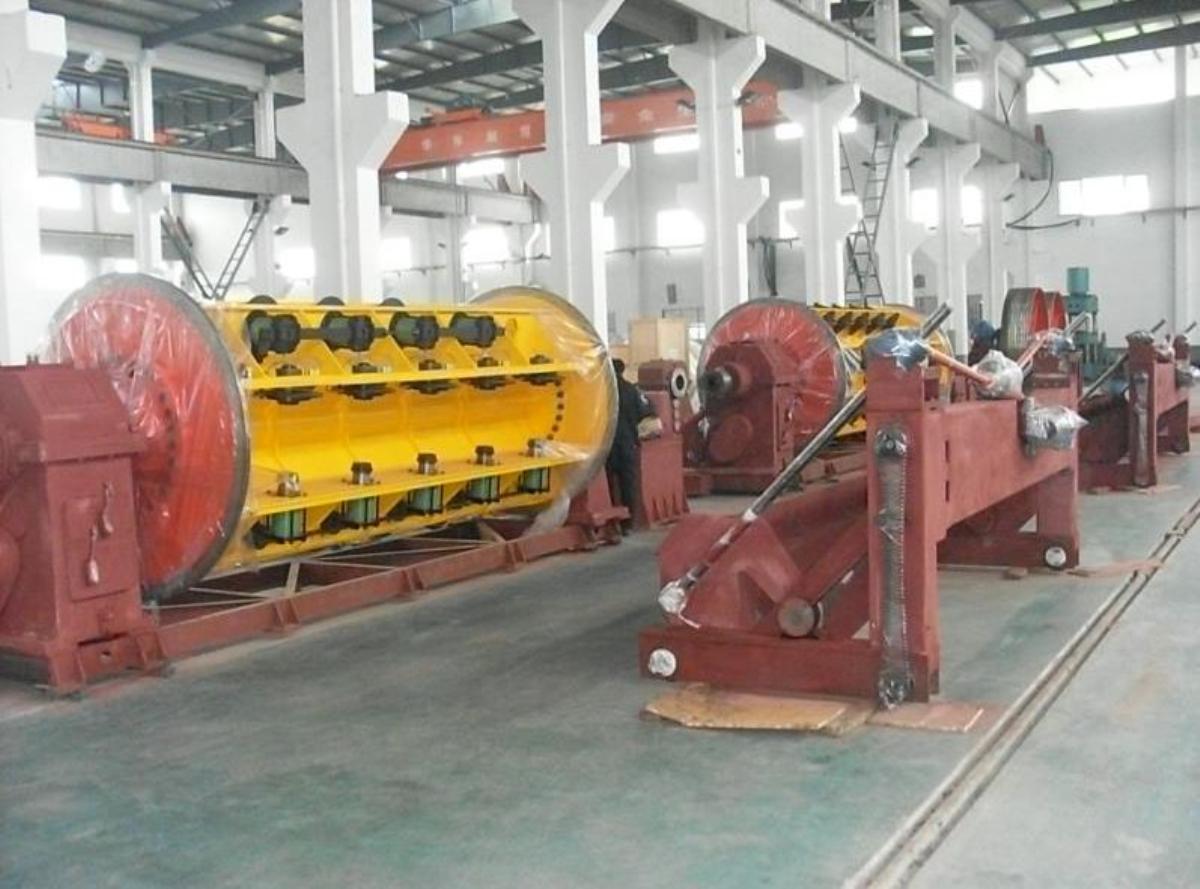

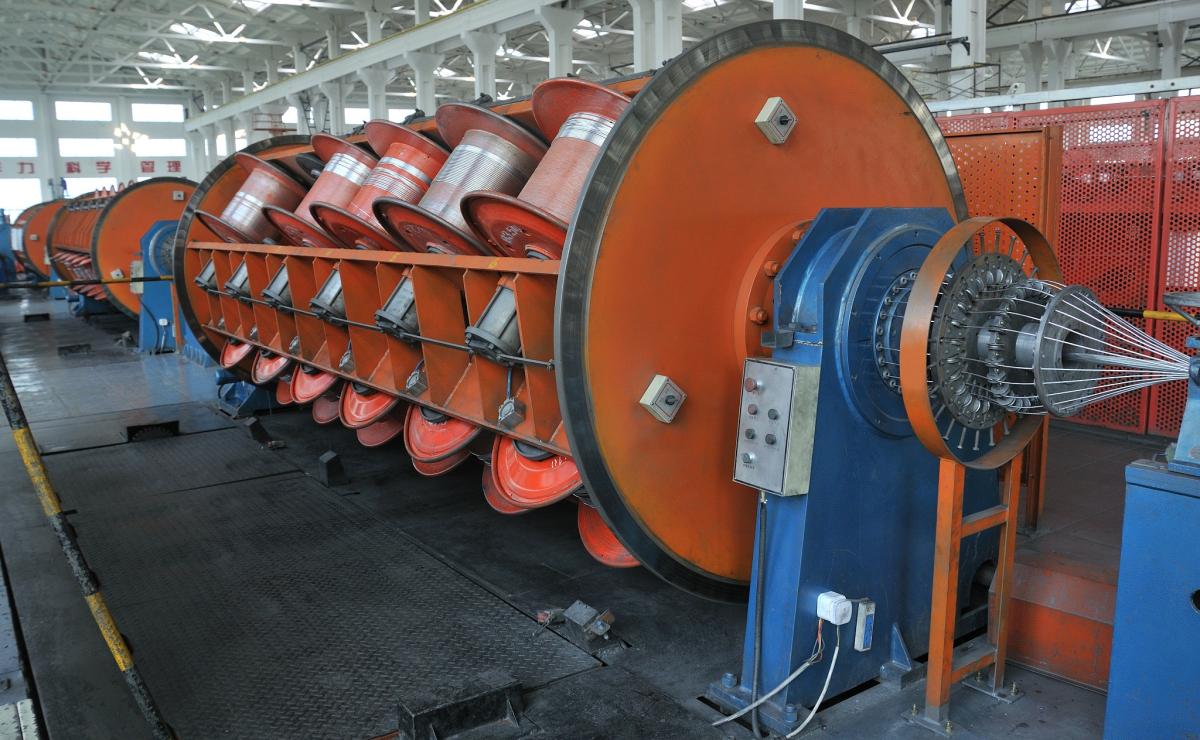

6+12+18+24+30/500/630/710/800 Rigit Strander

6+12+18+24+30/500/630/710/800 Rigit Strander

TECHNOLOGY PARAMETER
Stranded single wire diameter
(Cu): φ01.2 -5.0 mm
(M): φ01.5 - 5.0 mm
Maximum cross section area
(Cu): 500 mm2
(Al) 630 mm2
Cage speed
51.3-158.6 r/rnin
Pitch
41.7-976.8 mm
Capstan speed
6.6-50.1 m/min
Maın motor power
90kw (DC motor)

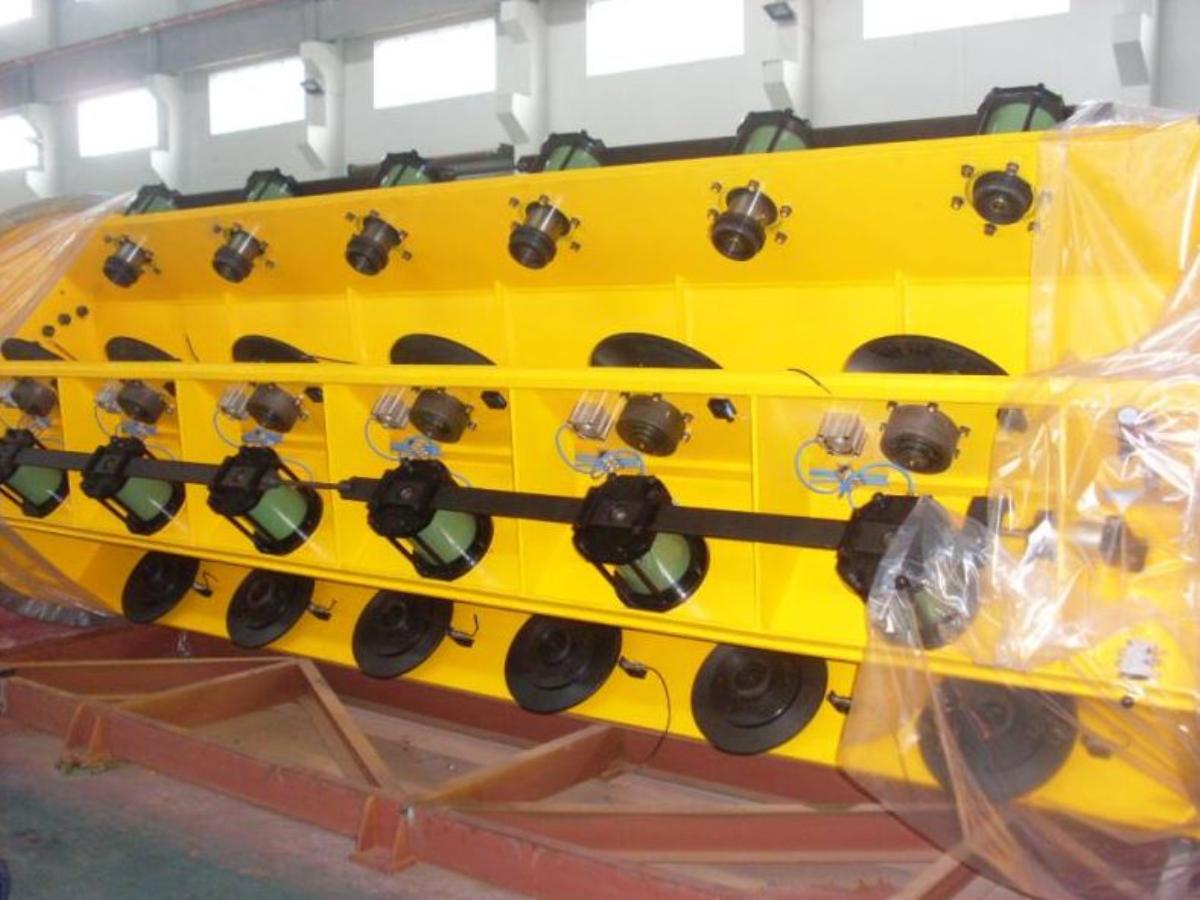

Cage bobbin
PND500

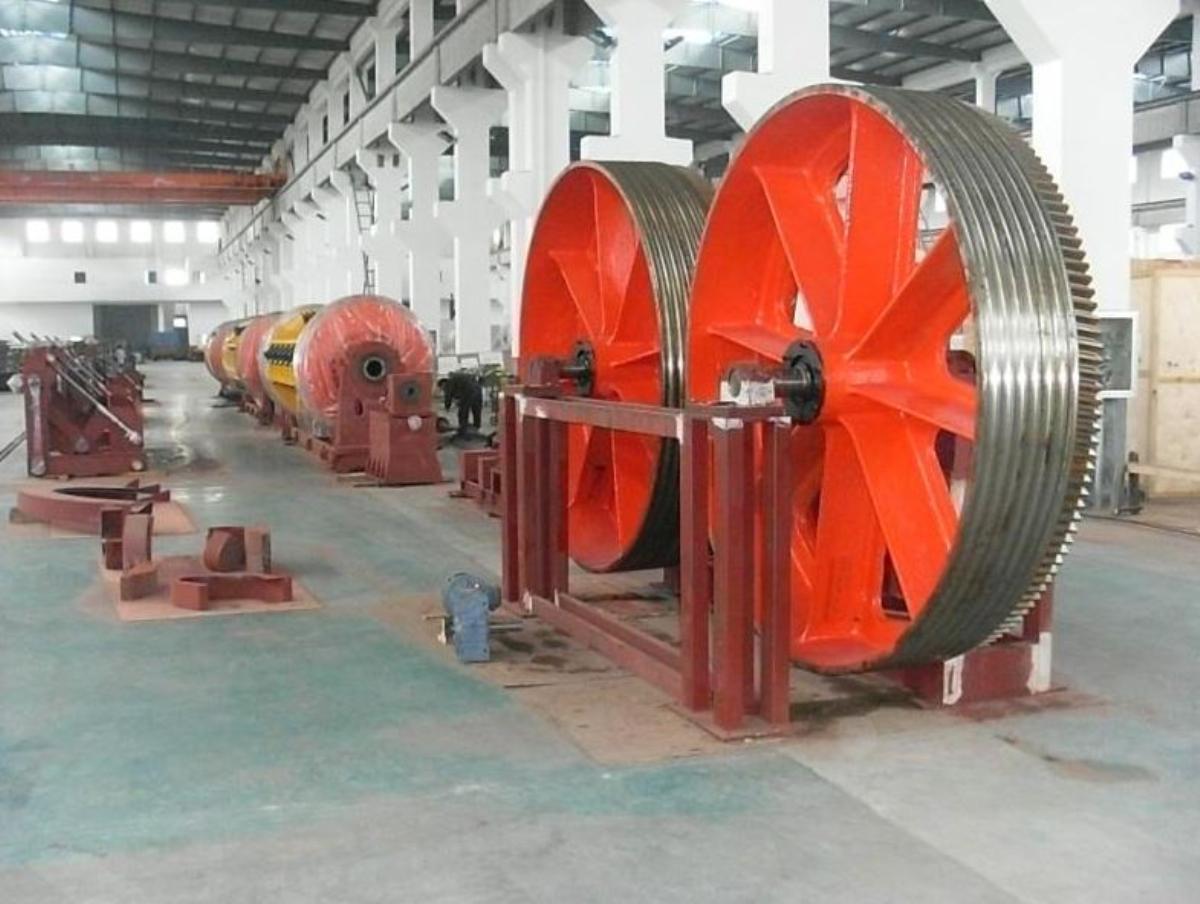

Capstan wheel
φ2000 mm
Take - up bobbin
PN1600 mm-2500 mm
External dimensions
40.74 x 4.5 x 2.5 m
Installation weight
54.3 T
Height of center
1000 mm
Installed power
122 KW
