Technology Parametter

Intetwirediameter

Φ8mm

Outletwirediameter

Φ1.2mm-Φ4mm

Φ1.5mm-Φ3mm(Coiler)

Max.outputspeed

25m/s noannealing

20m/s withannealing

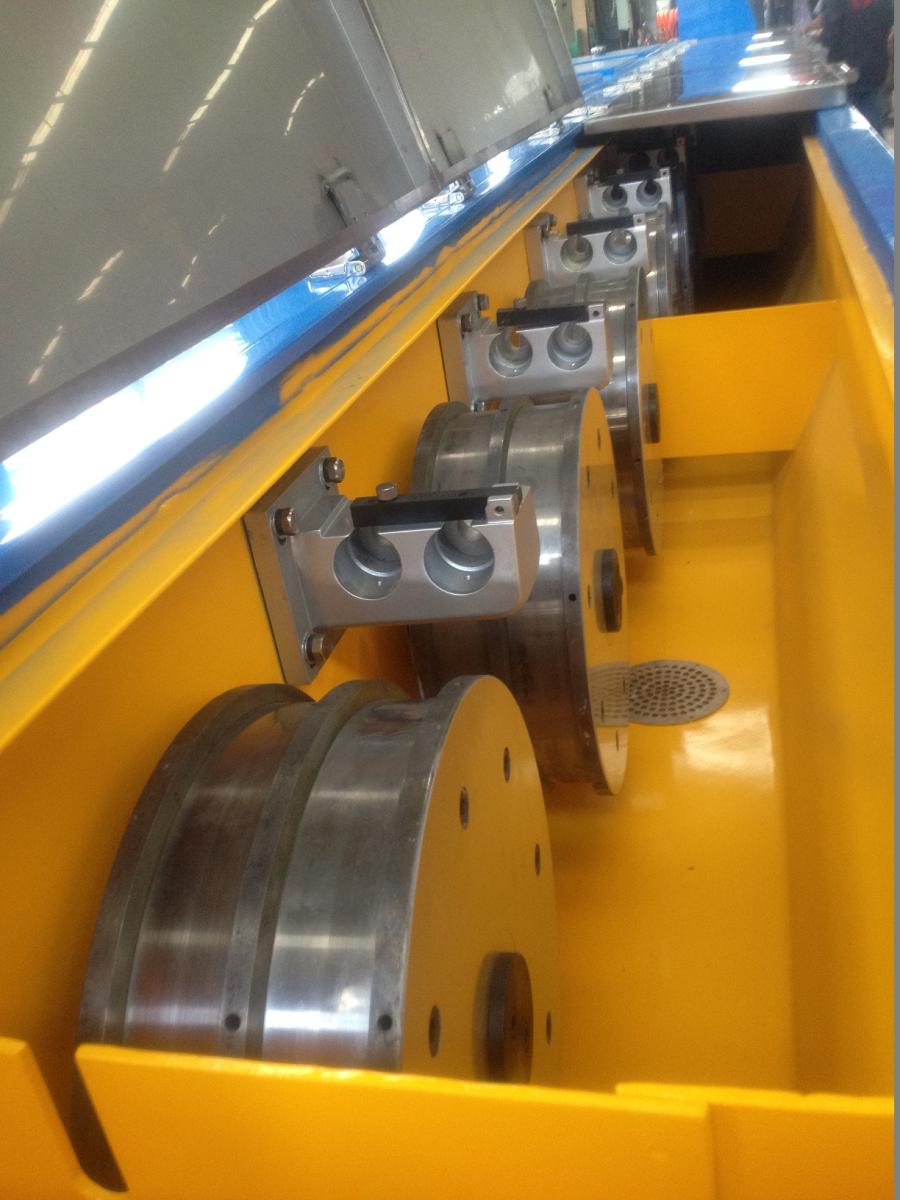

Capstandiameter

Φ450mm

Dies

13

Die size

Φ40×25

Length of wireaccumulated

9m

Dual spooler

PND500-PND630

Main motor power

250KW

Final capstan motor

75KW / DC

Dual spooler motor

30KW / DC

Annealingpower

5000A DC 70V

Elongationratio

25%-32%

Externaldimensions:length×width×height

2800x5310x4200mm
